Smart Lift 2.40 SL Universal

Electromechanical 2-column lift with spindle and universal arms

Smart Lift 2.40 SL Universal

Item No:SL240.2000000D-5001
Smart Lift 2.40 SL Universal
2 post lift Smart Lift 2 40 SL UNI f NB RAL5001 blue
2 post lift Smart Lift 2 40 SL UNI s NB RAL5001 blue
Customize Compare
Brief description
Item No: SL240.2000000D-5001
Lifting capacity: 4000 kg
Type 2 Säulenhebebühne
Color blau

Smart Lift 2.40 SL Universal

The electromechanical 2 column lift Smart Lift 2.40 SL Universal with spindle, a load capacity of 4000 kg and asymmetrical 2-times telescopic arms is the ideal lift for the price-conscious and demanding car workshop. With its low minimum height and flexible installation width, it fits into any car workshop. The simple cable connection between the columns can either be installed in the floor or via a simple, height-adjustable cable bridge at the top between the columns.

  • Lifting time and lowering time: [AttributeShortCode,attribute=Hub-/Lowering time,attributeid=88] seconds
  • Load capacity: 4000 kg
  • Adjustable in width and height, low minimum space requirement
  • Ideal for low ceiling heights with minimum height of only [AttributeShortCode,attribute=Erforderliche Deckenhöhe,attributeid=77] mm
  • 5 years warranty on spindle and spindle nut system
  • Compressed air connection and 220 V socket as standard integrated into the column
  • High quality: each unit is individually tested under load before shipment
  • Developed and manufactured in Germany

The Nussbaum Smart-Lift series has proven itself for over 20 years. Today, more than 100,000 Smart Lift lifts are available worldwide to assist car mechanics in their everyday work.

The spindle carrying nut system consists of a rotating spindle and a low-wear lifting nut made of high-quality Nylatron®. A second safety nut under the carrying nut additionally secures the system. The arms are secured by an automatic locking device. The lifting nut can be inspected by the user by means of an easily visible optical wear check.

The columns and support arms are welded in Nussbaum's own state-of-the-art welding facilities, shot-peened and subsequently Blue powder-coated. Your lift is thus protected against dirt and weather in the long term.

Shipment

Hebebühne mit Kabelbrücke (verstellbar), Asymmetrische, teleskopierbare Tragarme, 4 im Tragarm fixierte Drehteller, Energie-Set (Option): E-Set (230 V/ Druckluft) in der Bediensäule

Installation services

Fundamentstärke 200 mm C20/25 normale Bewehrung, 12 Dübel BM12-20/80/40 (abhängig vom Fundament, siehe Prüfbuch), Elektroanschluss 3 PH, N + PE, 400 V, 50 Hz, Absicherung 16 Amp. träge, Luftanschluss für Energie-Set (Option), Entladung

Details
Capacity 4000 kg
RAL color RAL 5001 - Blue
Coating Powder coating
Recommended installation width 3350 mm
Required ceiling height 2900 mm
Pick up pad height min 115 mm
Pick up pad height max 190 mm
Pick up pad height min 115 - 190 mm
Min length front arm 570 - 1160 mm
Min length rear arm 1130 - 1840 mm
Lifting height max. 2060 mm
Clear distance between columns min 2650 - 2770 mm
Synchronization system
Column height 2890 mm
Installation width min. 3230 - 3350 mm
Total width min 3230 - 3350 mm
Lifting/lowering time 40 sec
Clearance height min 3682 - 4133 mm
Drive-through width min 2394 - 2514 mm
Drive-through width column min 2650 - 2770 mm
Drive-through width lifting carriage min 2394 - 2514 mm
Total height min 3716 - 4167 mm
Motor power per column 1,5 KW
Pick up device
E-Set
Compressed air supply nein
Electrical connection (Ph/V/Hz) 3 Ph , 400 V , 50 Hz
Fuse protection
Foundation length 3750 mm
Foundation width 1600 mm
Concrete thickness 200 mm
Concrete quality C20/25
Customs tariff number 84254100

1
Packaging
Product Dimensions 2960mm x 770mm x 550mm
Total weight 650kg
Stackable 3 times
Bearing housing mounted Rd. 98x50 C45 Mounting part Item No: 225SL25031M
Cable set SL complete Item No: 9232SL393004
Carrying arm long left Opposite side 1130 - 1840 mm Item No: 240SPL08002
Clamping element VKT. 20x50 S235JR incl. galvanized Item No: 9225SL25026
Connector Device socket 4-pin Item No: 991337
Contactor DC24V / 5,7KW / 400V [27] Item No: 990842
Control board SL ZPR 100 S with potentiometer Item No: 940253
Coupling socket with female thread Item No: 960134
Cover cap Rd.87x52 PA Purchase part Item No: 9232SEL28180
Cover plate BL. 1,25x198x2760 DX 51 D+Z cpl. Item No: 9240SL09008
Cross tube sheet 1,5x156x2900 DX51 D+Z cpl. Item No: 9240SL05083

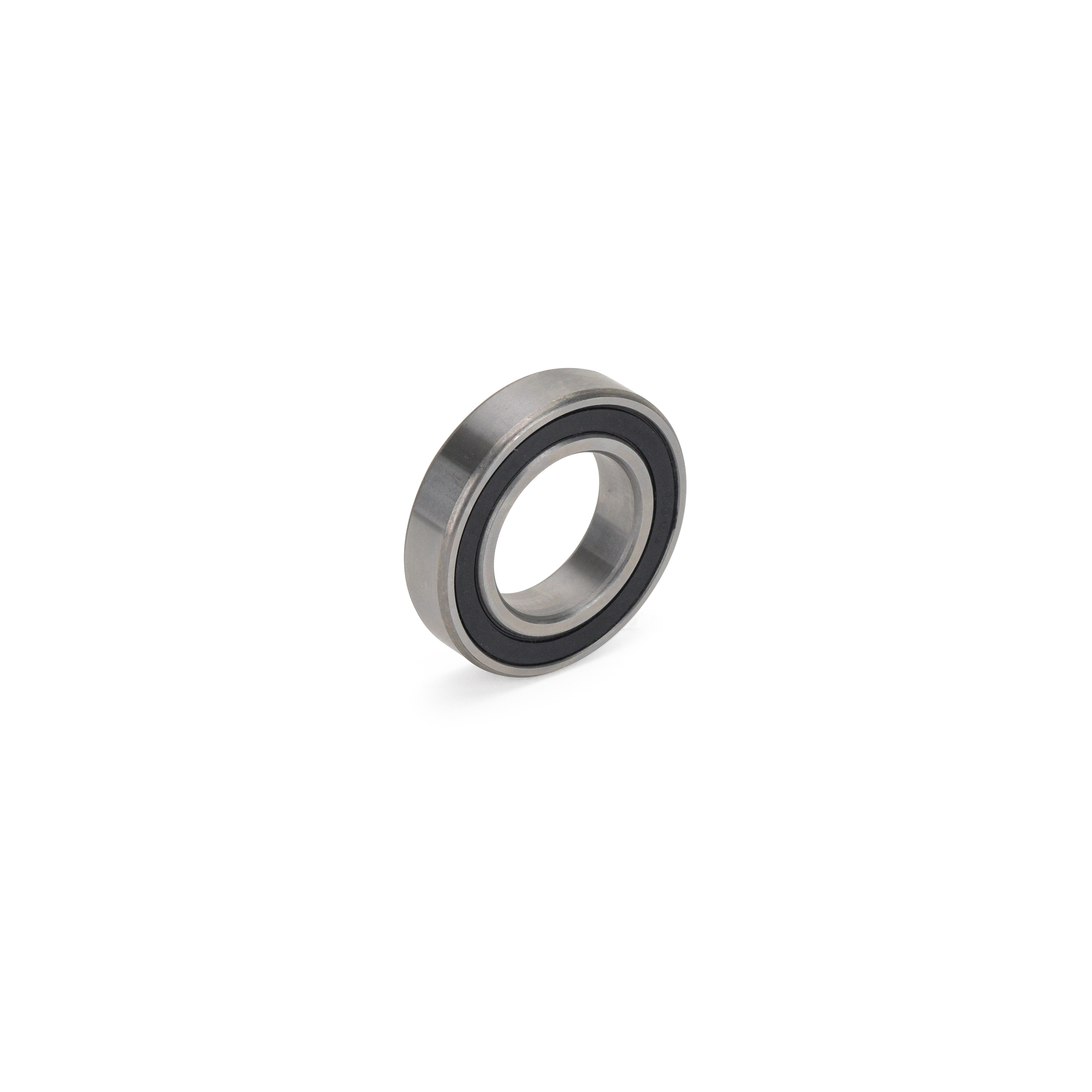

Deep groove ball bearings, single row, 6007-2RS Item No: 970029
Deep groove ball thrust bearing, 51207 Item No: 970028
Elastomer support Drm. 125x24 mm Item No: 901103031
Energy set plastic 70X50X150 Item No: 9225SL05093
Felt ring MNII raw white 62X43X8 Item No: 970658
Fuse holder for E-Set incl. fine fuse 5x20 mm 6,3A Item No: 9232SL393024
Grease nipple (9AM6X1) Steel DIN 71412 M 6x1 Item No: 970020

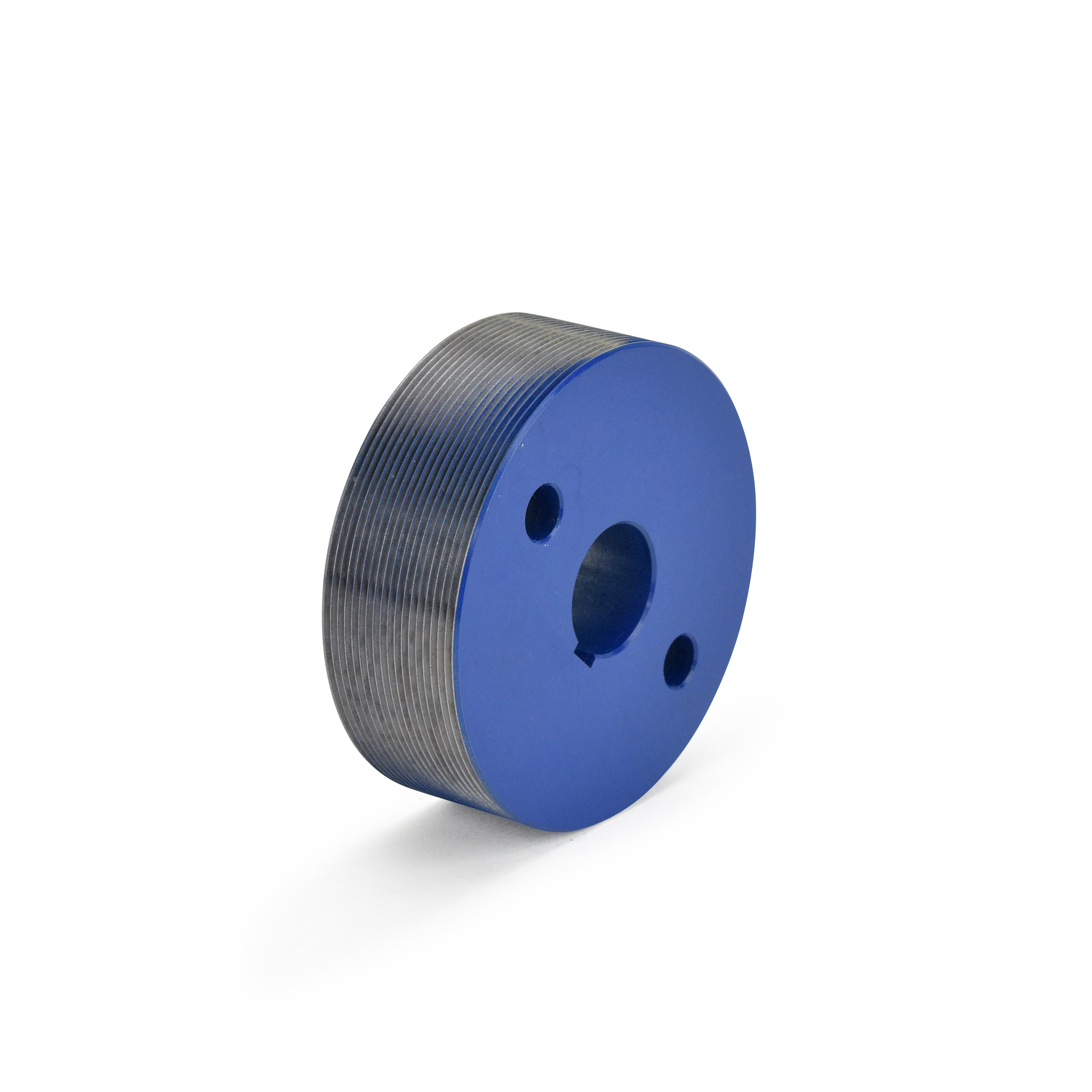

Grooved pulley RD. 131X45 9S20K -KANBAN- Item No: 250SL02010
Head plate Operating side Welding part Item No: 450SL05015
Head plate Opposite side Welding part Item No: 450SL05016
Hinge bolt Rd. 40x237 C45+C (galvanized) Item No: 232NSTL28016
Hose clamp 40-60 MM12,2 MM galvanized Item No: 970978
Intermediate plate Rd. 60x5 9S20k Item No: 922505057
Locking lock washer Rd100x25 42CrMo4(galvanized)-Kanban- Item No: 250SL08039
Motor 232 SL Electronics ATB (994031) Item No: 232SL01003ATB
Profile rubber 400 mm long Item No: 225SL06103S1
Reversing switch W 151/93.1000-SO-NU Item No: 994777
Ribbed belt RB 17 PJ 508 Item No: 972357
Riser pipe sheet 1,5x127x985 DX51 D+Z cpl. Item No: 9225SL45073
Riser pipes 250SL sheet 2x154x1179 QSTE372 ZN r. + l. Item No: 9250SL05070SET
Schuko socket outlet blue 10/16A 230V IP54 Item No: 990646
Schutzkappe f.Ziehstange 10mm Item No: 970008
sheet metal blinds 1,0x98x230 StW22 DD11 cpl. Item No: 9225SL09010
SL-Synchronized potentiometer Complete Item No: 232SL03003
Sliding block 10x20x46 PA6.6 Item No: 9225SL06036
Sliding block 4 FL. 15X10X50 PA6.6 Item No: 9225SL06038
Sliding block Fl. 35x45x80 PA6.6 black Item No: 9225SL06033
Sprengring SW40 N0400 ST VR004580-2 Item No: 970006
Support arm telescopic short 240SL/HLNT 570 - 1160 mm Item No: 232NSTL28038
Telescopic support plate complete Item No: 232SEL28217
Telescopic threaded bush Rd. 50x75 C45K (galvanized) Item No: 232SEL28218
Type plate 53x53 ALU 0,5 mm ELOXALSCHILD Item No: 970513
